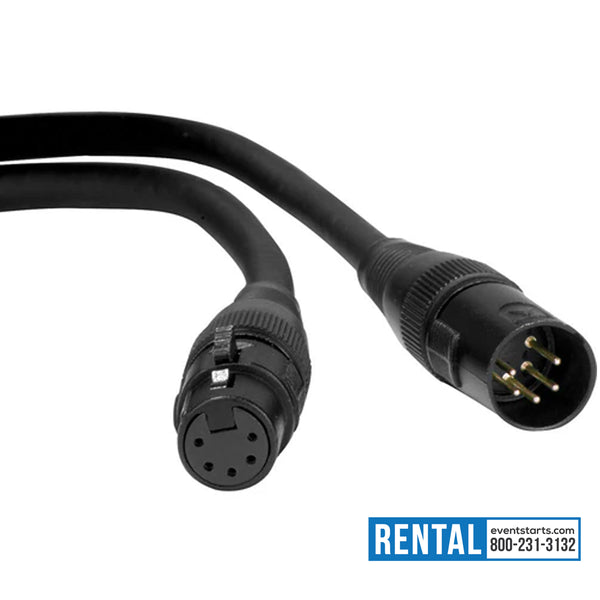

The 3' American DJ Accu-cable 5-pin DMX Cable is designed for connecting DMX controllers, DMX lights, and other 5-pin DMX devices into a stage lighting or effect system for live performance applications. The cables are constructed of 22 AWG stranded tinned copper conductors insulated by polyethylene within a PVC jacket.

Electrical

Wire Gauge 22 AWG
Conductor Capacitance 12.5 pF/ft at 1 kHz
Conductor DC Resistance 24 Ohms/ft (Up to 1000' / 304.80 m)
Nominal Impedance 110 Ohms
Attenuation 0.6 dB @ 1 MHz

General

Connector 1 5-Pin XLR Male
Connector 2 5-Pin XLR Female
Number of Conductors 4
Conductor Material Tinned Copper
Shielding 85% Tinned Copper Braid
Jacket Type Polyvinyl Chloride (PVC)
Insulation Type Polyethylene
Outer Diameter 0.09" / 2.29 mm
Bend Radius 3.5" / 8.9 cm
Maximum Pull Tension 22 lb / 10 kg
Operating Temperature -22 to 167°F / -30 to 75°C
Cable Length 3'
Weight 2.5 lb / 1.1 kg
