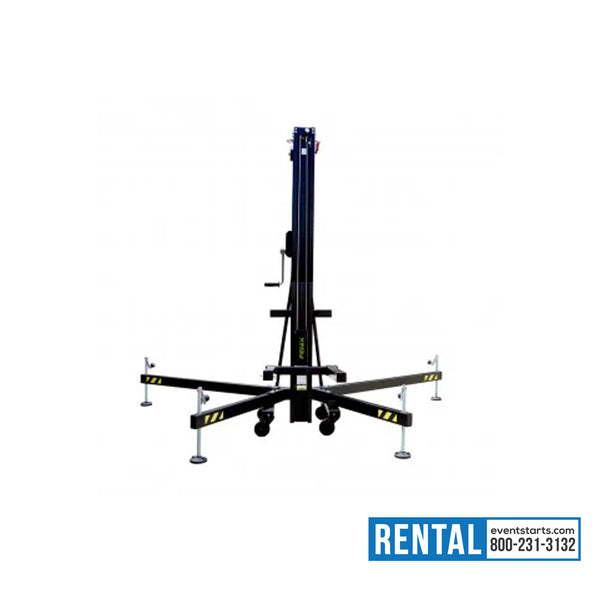

Fenix Crank Lifter 21ft - 550 lbs Truss Stage Tower Stand Rental

Features

The Fenix Crank Lifter 21ft - 550 lbs is a premium line array frontal loading lifting tower designed and manufactured by FENIX® Stage in Valencia, Spain. With over 20 years of industry expertise, Fenix offers a high-end, reliable, and efficient lifting solution perfect for raising line array systems, trusses, and LED screens up to 21.3 feet (6.5 meters) safely and smoothly. This lifter is ideal for touring, rental, concert productions, trade fairs, theaters, and broadcast setups.

Certified to rigorous European standards ([EC 89/392 EWG], [BGV C1], [BGG 912]), the Fenix XT-AT06B ensures safety and performance. It allows raising loads directly from the floor without effort, supporting up to 550 lbs (250 kg) with a powerful winch and safety mechanisms such as autoblocking bolts, automatic brake winch, and pin locking system (PLS) that takes the load off the wire rope during lifting stops.

Constructed from durable extruded aluminum alloy (EN-AW 6082 T6) with TIG welding, the lifter features four telescopic profiles, a compact base with adjustable legs for leveling uneven floors, and smooth mobility via castors and transport wheels. The design saves storage space while maintaining exceptional stability and ease of handling.

Package Includes

Fenix Crank Lifter 21ft / 550 lbs
Winch AL-KO 901 Plus (900kg capacity)
Adjustable height legs and safety fasteners
Castors and transport wheels for easy movement
Bubble level for precise vertical adjustment
Required connection hardware

Technical Specifications

Maximum Height: 6.50 meters / 21.30 feet
Minimum Height (folded): 1.97 meters / 6.50 feet
Maximum Load: 250 kg / 550 lbs
Winch Capacity: 900 kg / 1,900 lbs
Material: Aluminum AL Si 6082 / T6 (extruded and TIG welded)
Workspace Dimensions: 1.66m x 1.72m (65" x 67")
Closed Base Area: 0.485m x 0.48m (19" x 19")
Weight: 107 kg / 235 lbs
Cable: Galvanized steel, 6mm diameter, 7x19+0 composition, max load 2000 kg
Safety Features: Autoblocking bolts, automatic brake winch, inner pendulum and external triggers, safety pins on legs, bubble level
Mobility: Four wheels at base + two for horizontal transport
Adjustable Legs: For uneven ground or fixed legs for flat indoor surfaces
Made in: Valencia, Spain
Certifications: DEKRA and CE Certified

Why Choose Fenix Crank Lifter 21ft for Your Event?

The Fenix Crank Lifter 21ft offers unmatched safety, reliability, and ease of use for flying line array systems, LED screens, and truss setups at your event. Its compact design, certified components, and smooth lifting mechanism make it a professional-grade choice for touring bands, DJs, corporate events, and live productions.

With its heavy-duty construction and advanced safety features, this lifter ensures your gear is raised efficiently with minimal effort, reducing labor and enhancing event safety.
