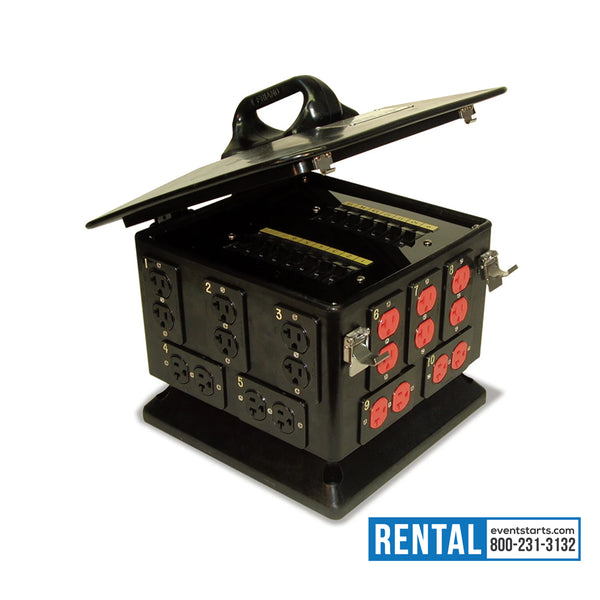

LEX 100 AMP 3-Phase Power Distribution Box (15x 20A)

The LEX 100 AMP 3-Phase Power Distribution Box is a reliable, compact, and rugged solution for indoor temporary power distribution. Built into a durable Pagoda-style enclosure, this power distro is ideal for corporate events, sound systems, computers, portable power tools, trade shows, and other indoor setups where dependable 120/208Y VAC power is required.

Designed for easy transport and stackability, this box features (15) NEMA 5-20 duplex receptacles (30 total Edison outlets), protected by (15) single-pole circuit breakers under a safety-hinged lid. With a 100A 3-phase input via standard Cam-Lok connectors, it’s engineered for simplicity, safety, and quick deployment.

Technical Specifications

Rating: 100 Amp, 3 Phase, 4 Pole, 5 Wire (H,H,H,N,G), 120/208Y VAC
Enclosure Type: Pagoda, molded rubber
Input Connector: (1) set of (5) 16 Series Cam-type color-coded panel mount inlets
Output Connectors:
- (15) NEMA 5-20, 20 Amp duplex receptacles (2 outlets per duplex)
- Total: 30 x 120V Edison outlets
Overcurrent Protection: (15) x 20A Single Pole branch-rated circuit breakers
Environmental Rating: NEMA 1 Indoor
Feed Thru: None
Certifications: cULus Listed (U.S. and Canada approved)
Weight: 32 lbs
Dimensions: 14.5" L x 14.5" W x 13" H

Package Includes

(1) LEX 100 AMP 3-Phase Power Distribution Box (Pagoda Style)
(1) Set of Cam-Lok input tails (optional by request)
(15) NEMA 5-20, 20A duplex receptacles
Hinged breaker access for safety and fast resets
(Optional): Extension cords or Edison breakout stringers

Please note: This unit is indoor-rated. If you're powering outdoor systems, contact us for NEMA 3R-rated alternatives.

Why Choose LEX 100 AMP 3-Phase Power Distribution Box for Your Event?

The LEX 100 AMP Power Distro offers a space-saving, easy-to-deploy indoor solution for powering multiple Edison-output devices from a 3-phase source. Whether you're setting up sound systems, booths, or office gear, this power distribution unit handles high-density power needs with compact reliability.

Its shock-resistant rubber enclosure, stackable design, and clear breaker labeling make it a go-to solution for safe, scalable power. Plus, it's UL-certified for U.S. and Canadian use.

We proudly provide power distro rentals for productions and events in Baltimore, Boston, Charlotte, Delaware, Florida, Nashville, New Haven, New Jersey, New York City, Philadelphia, Tampa, and Washington DC—with expert delivery, setup, and support every step of the way.
