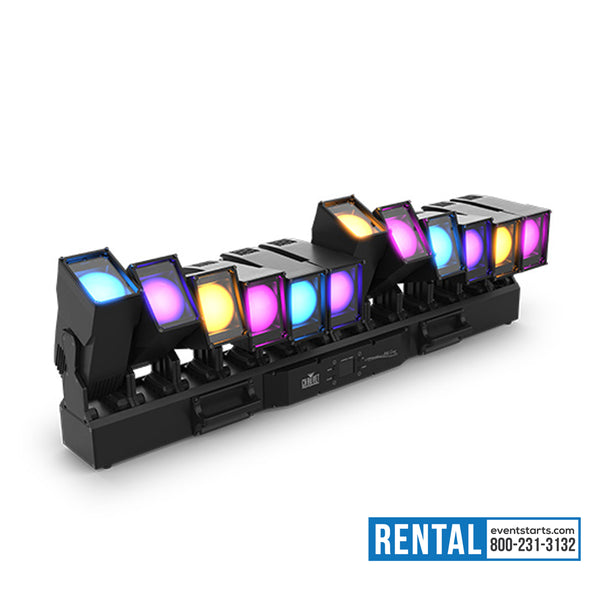

Chauvet COLORado PXL Curve 12

The Chauvet COLORado PXL Curve 12, part of Chauvet Professional's COLORado PXL Series of motorized LED battens, takes pixel-mappable wash and effects lighting to a new level with its twelve independently controllable tilting heads, variable zoom, full IP65 weather resistance and comprehensive multi-protocol control. This fully pixel-mappable motorized RGBW LED batten is engineered entirely around Chauvet's most advanced optical and motion technologies, delivering breathtaking color reproduction, dynamic movement and seamless multi-fixture integration across concerts, festivals, broadcast stages and architectural installations. Each of the twelve independently motorized heads delivers 200° of tilt travel and a 5.7° to 36.3° zoom range, giving lighting designers complete per-pixel control over beam size, direction and color in a single fixture. The PXL Curve 12's seamless edge-to-edge mounting maintains consistent pixel pitch between adjacent fixtures for runway effects and sweeping multi-unit looks, while its extensive built-in effects library — including virtual gobos, movement macros and foreground/background color control — makes programming complex volumetric looks fast and intuitive. Full support for DMX, sACN, Art-Net, Kling-Net and RDM ensures seamless integration into any lighting control ecosystem.

General Specifications:

• System Type: Fully Pixel-Mappable Motorized IP65-Rated RGBW LED Batten
• Light Source: 12x RGBW LEDs, 45W each (2.96A), 50,000-hour life expectancy
• Total Lumens: 5,807 lm
• Color Temperature Range: 2700K – 8000K
• Beam Angle (Spot): 5.7° / Beam Angle (Flood): 26.8° / Beam Angle (50% Zoom): 13.8°
• Field Angle (Spot): 9° / Field Angle (Flood): 33.9°
• Cutoff Angle (Spot): 9.9° / Cutoff Angle (Flood): 36.3°
• Zoom Range: 5.7° to 36.3°
• Illuminance (Spot): 38,727 lux @ 5 m / Illuminance (Flood): 1,120 lux @ 5 m
• Tilt: 200° per head / Tilt Range Options: 60°, 180°, 200°
• Strobe Rate: 0 – 20 Hz
• Selectable PWM: 600, 1200, 2000, 4000, 6000, 15,000 Hz
• Dim Modes: 5
• Control Protocols: DMX, sACN, Art-Net, Kling-Net, RDM
• IP Rating: IP65
• Power Connectors: TRUE1-compatible power input/output
• Data Connectors: IP65-rated 5-pin DMX and TCP/IP input/output
• Software Upload Port: IP65-rated USB-C

Dimensions:

• Length: 39.49 in. (1,003 mm)
• Width: 6.65 in. (169 mm)
• Height: 12.76 in. (324 mm)
• Net Weight: 76 lb (34.5 kg)

Features:

• Twelve independently motorized and pixel-mappable RGBW heads with individual per-head control of tilt, zoom and color for maximum creative flexibility in any production environment
• 200° tilt travel per head with quiet, high-speed motor operation delivers dramatic sweeping movement and precise static positioning without disturbing performers or audiences
• Variable zoom range of 5.7° to 36.3° per head allows seamless transition between tight spot and wide flood beam profiles across all twelve zones independently
• Seamless edge-to-edge mounting system maintains consistent pixel pitch between adjacent fixtures for flawless runway effects, chases and multi-unit synchronized looks
• Extensive built-in effects library includes virtual gobos, movement macros and foreground/background color control for fast, powerful pixel animation without external media servers
• Basic and advanced operating modes accommodate programmers of all experience levels, from simple static color looks to complex multi-layer pixel-mapped productions
• Full multi-protocol support for DMX, sACN, Art-Net, Kling-Net and RDM enables seamless integration with any professional lighting console or media server ecosystem
• RDM support enables remote addressing, status monitoring and troubleshooting from the lighting console without visiting each fixture individually
• IP65-rated housing, connectors and USB-C software upload port provide full weather protection for outdoor festivals, touring stages and permanent architectural installations
• TRUE1-compatible power input/output ports enable clean, weatherproof power distribution across multiple units in large-scale touring rigs
• Selectable PWM frequency settings up to 15,000 Hz eliminate flicker artifacts for broadcast and camera-sensitive environments
• Slotted Omega brackets allow fast, tool-friendly mounting to truss with included hardware for efficient rigging on any production timeline
