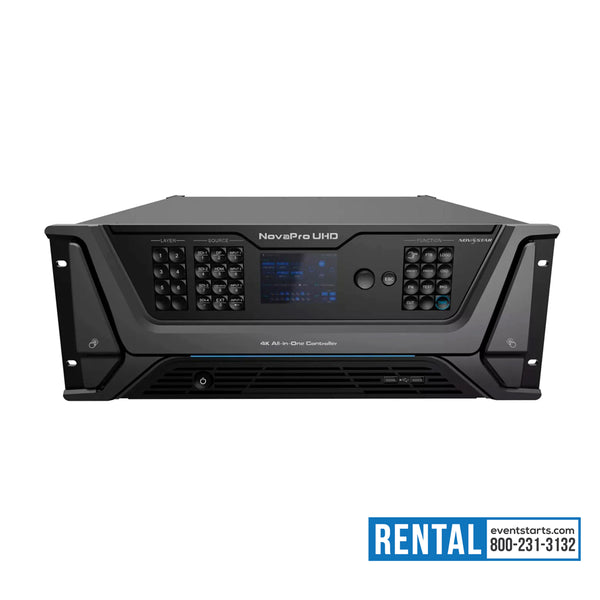

RENTAL NovaPro UHD 3-in-1 Video Controller

The NovaPro UHD 3-in-1 Video Controller is a high-performance LED video processor designed for demanding 4K display control applications. It combines advanced video processing, sending, and control functions into a single, compact unit. Whether you're managing a large concert screen, a video wall for a conference, or an immersive trade show display, the NovaPro UHD simplifies your setup while delivering maximum visual performance.

This all-in-one controller is compatible with a wide range of input and output formats, making it ideal for high-end rental, touring productions, and fixed installations. Its 4K processing power and intuitive user interface ensure efficient and powerful display management for even the most complex LED systems.

Technical Specifications

Inputs

• 12G-SDI (x4):

  • Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), and ST-292 (HD)

  • Resolutions up to 4K×2K@60Hz

  • SDI loop-through available

  • Note: Connector 4 supports deinterlacing.

• DisplayPort 1.2:

  • Resolutions up to 4K×2K@60Hz (8K×1K@60Hz)

  • Supports HDCP 1.3

• HDMI 2.0:

  • Resolutions up to 4K×2K@60Hz (8K×1K@60Hz)

  • Supports HDCP 1.4 and 2.2

• HDMI 1.3 (x4 via input card):

  • Up to 1920×1080@60Hz

  • Interlaced input support

  • Card can be replaced with 4×DVI input card

Outputs

• Ethernet Ports:

  • Gigabit outputs with a maximum loading of 8.8 million pixels

  • Max width: 8192 px, Max height: 8192 px

• OPT 1–4 (Fiber Optic):

  • 10G optical outputs

  • OPT 1 → ports 1–8, OPT 2 → ports 9–16

  • OPT 3 and 4 are hot backups for OPT 1 and 2

• MVR (HDMI 1.3):

  • Multi-view monitoring of input, preview, and program

• AUX (HDMI 1.3):

  • Auxiliary output (e.g., teleprompter)

Control & Connectivity

• Ethernet:

  • Connects to PC or network

• USB Ports:

  • 1 × USB-B for debugging

  • 2 × USB-A for firmware update, mouse/keyboard, or device cascading

• GENLOCK IN/LOOP:

  • Synchronization across multiple units

• CONTROL UI:

  • HDMI output to display the embedded Master VI control software

Typical Applications

• Concerts and Touring Events

• Corporate Events and Conferences

• Trade Shows and Exhibitions

• Broadcast & Live Video Production

• High-Resolution LED Video Walls

Package Includes

• (1) NovaPro UHD 3-in-1 Video Controller

• (1) Power Cable

• (1) USB Cable

• (1) Ethernet Cable

• (1) User Guide

• (1) Road Case (if part of touring package)

• Setup support available upon request

Why Choose NovaPro UHD 3-in-1 Video Controller for Your Event?

The NovaPro UHD 3-in-1 Video Controller delivers professional-grade 4K video processing, giving you full command over your LED wall’s performance. It supports a wide range of input types, from 12G-SDI to HDMI 2.0, ensuring compatibility with most production environments. The optical outputs and hot-backup options guarantee reliable performance even in mission-critical scenarios.

Whether you're producing a corporate presentation or managing visuals for a multi-stage music festival, this all-in-one video controller provides the scalability and precision you need. With front-end processing, high refresh rates, and an easy-to-use control interface, the NovaPro UHD streamlines your video workflow and enhances your visual impact.
