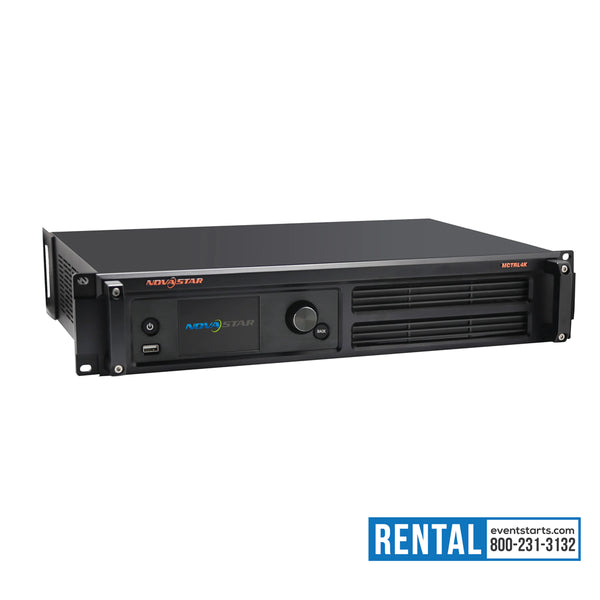

NovaStar MCTRL4K 4K 60Hz LED Controller Processor

The NovaStar MCTRL4K 4K 60Hz LED Controller Processor is a premium 4K LED video controller designed for ultra-high resolution and ultra-wide screen displays. Built with cutting-edge image processing technology and exceptional loading capacity, it supports resolutions up to 4096×2160@60Hz and custom formats up to 7680 pixels in width or height. Whether you're managing content for a stadium jumbotron, concert stage LED wall, or immersive exhibition video display, the MCTRL4K offers stability, clarity, and flexibility.

This LED controller processor supports HDR10, HLG, and 3D capabilities, delivering vibrant, lifelike imagery. With low latency and powerful calibration tools, the MCTRL4K is ideal for both rental and fixed applications where performance and visual precision are key.

Technical Specifications

Input

• 1 × DisplayPort 1.2

  • Supports resolutions up to 8.8 million pixels

• 1 × HDMI 2.0

  • Supports 8-bit, 10-bit, and 12-bit color depths

  • Resolutions up to 8.8 million pixels

• 2 × Dual-Link DVI

  • Combined input resolution: up to 8.3 million pixels

  • Supports mosaic and multi-card working modes

Output

• 16 × Neutrik Gigabit Ethernet Ports

• 4 × 10G Optical Fiber Outputs

• Maximum loading capacity per controller: 4096×2160@60Hz

• Supports screen splicing and cascading for larger displays

Video & Processing Features

• HDR Support: Compatible with both HDR10 and HLG standards

• Gamma Control: Individual Gamma adjustment for RGB at 10-bit/12-bit input

• Low Latency: Less than 1 ms, ensuring smooth live video output

• 3D Function: Works with EMT200 emitter and 3D glasses

• Color Depth Support: 8-bit, 10-bit, and 12-bit inputs

• Pixel-Level Calibration: Compatible with NovaStar’s new calibration tech

• Frame Rate Support: Accepts decimal frequencies like 23.98, 29.97, 59.94 Hz

• Web Configuration: Screen setup and control via browser interface

• Cascading Capability: Multiple MCTRL4K units can be linked for seamless control

Applications

• Concerts & Touring Events

• Live Broadcasts

• Corporate Events

• Stadium & Arena Displays

• Exhibitions & Trade Shows

• Security & Monitoring Walls

Package Includes

• (1) NovaStar MCTRL4K 4K LED Controller Processor

• (1) Power Cable

• (1) USB Cable

• (1) Ethernet Cable

• (1) Quick Start Guide

• (1) Road Case (optional, for touring setups)

• Technical assistance available upon request

Why Choose NovaStar MCTRL4K 4K 60Hz LED Controller Processor for Your Event?

The NovaStar MCTRL4K LED controller is the go-to choice for high-end video professionals seeking a reliable and powerful 4K LED video controller for dynamic environments. From sports arenas to immersive corporate displays, this processor delivers vibrant HDR visuals, ultra-low latency, and seamless configuration via a web interface or cascading control.

Designed with large-scale events in mind, the MCTRL4K video processor is built to handle the most complex video scenarios with ease. Its superior calibration features and multiple input/output options make it a versatile and future-ready solution.
