AVB processor and measurement platform The P1 combines in one unit a processor with EQ, delay and dynamic processing and a measurement platform with support for up to 4 microphones...

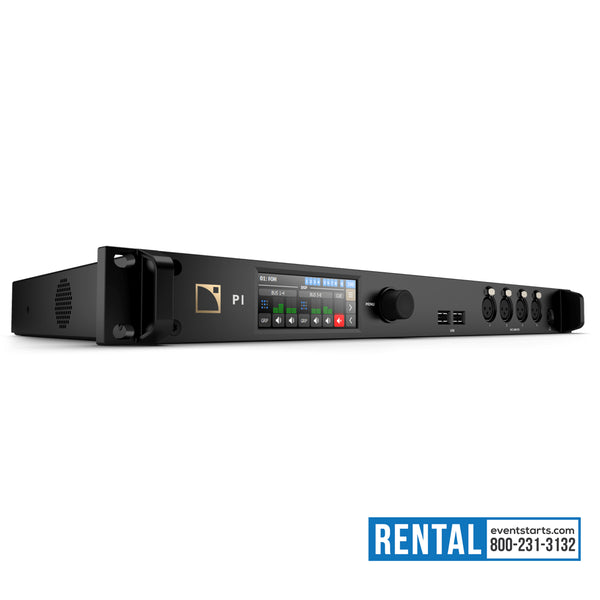

AVB processor and measurement platform
The P1 combines in one unit a processor with EQ, delay and dynamic processing and a measurement platform with support for up to 4 microphones with offline delay and equalization settings
The P1 allows the use of analog and digital signals in AVB, AES/EBU formats with synchronized switching to a redundant source. The processor provides a 4-bus matrix router and mixer in a 20 input x 18 output configuration.
The P1 processor can be monitored and controlled from the front panel and via LA Network Manager
Translated with DeepL.com (free version)
Features
20 inputs
• 4 Mic/Line inputs with +48V phantom power and HF filter
• 4 analog inputs with premium A/D converters
• 4 AES/EBU inputs with high quality sampling rate converter (SRC)
• AVB receiver supporting reception of 8 audio channels from a single stream
DSP
• Dual-core DSP
• 32-bit 96 kHz floating point processor
• Matrix mixer 20 inputs per 4 independent DSP buses with equalizers and dynamic processing
• Cue bus
• Direct routing to 18 outputs
• Signal generator
• Media player
16 + 2 outputs
• 4 analog line outputs with premium DACs
• 4 AES/EBU outputs
• AVB transmissions, supporting sending 8 audio channels in one stream
• 1 stereo headphone output
