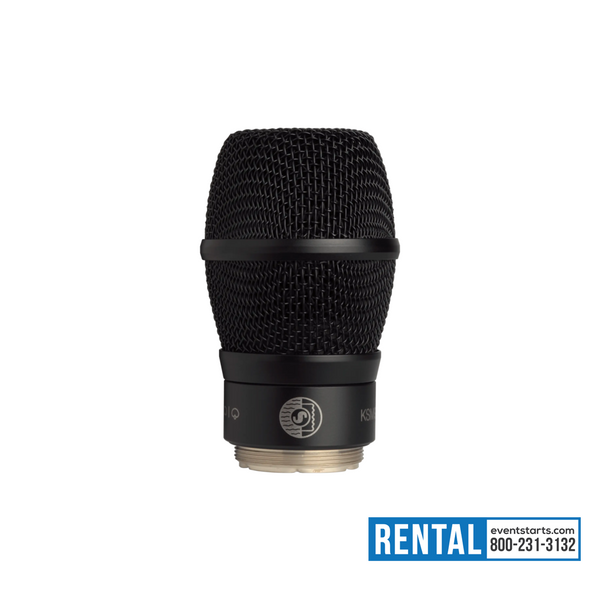

RENTAL Shure KSM9 Cartridge

The KSM9 is a Shure premium vocal microphone. The high-quality technology provides sophisticated components that capture the world's most accomplished studio and live performances.

Features

• Type: condenser vocal microphone.


• Directional pattern: cardioid, supercardioid (selectable).


• Bandwidth: 50 Hz - 20000 Hz.


• Output impedance: 150 ohms.


• Sensitivity: -51 dBV/Pa (2.8 mV).


• Maximum sound pressure level (SPL): 152 dB (2500 ohm load), 152 dB (1000 ohm load).


• Signal-to-noise ratio: 72 dB.


• Dynamic range (at 1 kHz): 130 dB (2500 ohm load), 130 dB (1000 ohm load).


• Clipping level (20 Hz to 20 kHz, 1% NIR): 6.7 dBV (2500 ohm load), 6 dBV (1000 ohm load).


• Own noise (equivalent ROC, A scale): 22 dB ROC.


• In-phase signal attenuation (10 to 100 kHz): ≥60 dB.


• Polarity: positive pressure on the diaphragm creates a positive voltage on pin 2 relative to pin 3. Power supply: 11 to 52 V phantom power support.


• Color: black.


• Dimensions: 83 x 49 mm.
