Acoustics P1. AVB Processor and Measurement Platform – What You Need to Know

When it comes to professional audio systems, clarity, precision, and control are everything. Whether you're running sound for a concert, corporate event, or large-scale installation, the ability to manage, monitor, and adjust your audio signals is essential. That’s where the Acoustics P1 comes in.

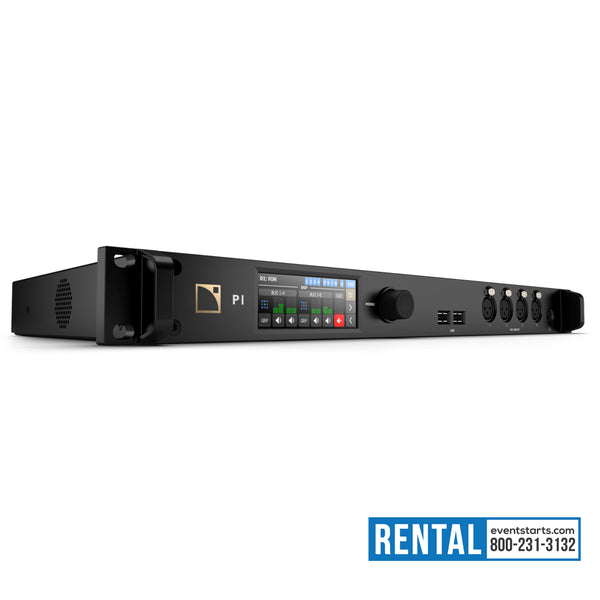

The Acoustics P1 is a sophisticated AVB processor and measurement platform that brings advanced functionality into one compact, powerful unit. It combines audio signal processing with real-time system measurement and monitoring, making it an ideal solution for today's complex audio-visual setups. Let's dive deep into what makes this equipment a standout and why it's a must-have for serious AV professionals.

What is the Acoustics P1?

The Acoustics P1 is an all-in-one processor designed to handle equalization (EQ), delay, dynamic processing, and system measurement tasks. This unit is specially crafted to simplify workflows by allowing sound engineers to manage all these critical audio elements through a single platform. Instead of juggling multiple devices, you can control processing and monitoring within one integrated system.

It supports up to four microphones, allowing for precise offline delay and equalization settings. This feature is incredibly useful for tuning large and complex sound systems accurately and efficiently, especially in challenging acoustic environments.

Moreover, the Acoustics P1 accepts both analog and digital signals. It handles AVB (Audio Video Bridging) and AES/EBU formats, ensuring seamless compatibility with modern digital audio networks. A key highlight is its ability to automatically switch to a redundant source without interruption, providing bulletproof reliability in live or critical environments.

Key Features of the Acoustics P1

Let's break down the primary features that make the Acoustics P1 a leader in audio processing and measurement.

Inputs and Connectivity

The Acoustics P1 is built to offer maximum versatility when it comes to inputs:

• 4 Microphone/Line Inputs: Equipped with +48V phantom power and a high-frequency filter, these inputs ensure clean, noise-free signal capture.

• 4 Analog Inputs: Utilizing premium A/D (Analog-to-Digital) converters, you can expect transparent, accurate audio conversion with minimal coloration.

• 4 AES/EBU Inputs: Featuring a high-quality Sampling Rate Converter (SRC), these digital inputs allow seamless integration with various digital audio sources.

• AVB Receiver: Capable of receiving 8 audio channels from a single AVB stream, this enhances the unit's networking capabilities significantly.

This broad input capability ensures the P1 can adapt to virtually any audio environment, whether analog, digital, or hybrid.

Advanced Digital Signal Processing (DSP)

At the heart of the Acoustics P1 is a powerful dual-core DSP engine operating at 32-bit/96 kHz floating point. This processing power translates to exceptionally detailed sound and low latency. Here’s what the DSP section offers:

• Matrix Mixer: 20 inputs are routed to 4 independent DSP buses, each equipped with equalizers and dynamic processors. This level of routing flexibility makes complex system configurations manageable and intuitive.

• Cue Bus: Essential for system monitoring and verifying signal paths during setup or live operation.

• Direct Output Routing: Directly route processed signals to 18 outputs, ensuring quick and clean signal paths.

• Signal Generator: Generate test tones or pink noise for system tuning and troubleshooting.

• Media Player: A built-in media player allows for easy playback of reference tracks or sound checks without needing external devices.

These processing tools ensure you have total control over your system’s audio quality and behavior.

Outputs

The Acoustics P1 offers an array of professional-grade output options:

• 4 Analog Line Outputs: Premium DACs (Digital-to-Analog Converters) deliver pristine sound to your analog destination devices.

• 4 AES/EBU Outputs: Seamless, high-quality digital outputs for linking to digital speaker processors, amplifiers, or consoles.

• AVB Transmission: Capability to send 8 audio channels through a single AVB stream, facilitating networked audio setups.

• Stereo Headphone Output: Handy for monitoring and troubleshooting directly from the front panel.

This combination of outputs ensures maximum flexibility, whether you are feeding an analog speaker system, a digital console, or an AVB network.

Front Panel and Remote Control

Managing a sophisticated system like this requires equally sophisticated control methods. The Acoustics P1 provides:

• Front Panel Interface: Direct control for quick access to key functions and configurations without needing a computer.

• LA Network Manager Integration: When connected to a network, you can use LA Network Manager software for comprehensive remote control and monitoring of the system. This interface allows you to visualize signal flows, tweak processing settings, and monitor system health in real time from your laptop or control room.

Remote control ensures quick adjustments during live events and proactive system management, minimizing the risk of technical surprises.

Practical Applications of the Acoustics P1

Because of its flexibility and advanced features, the Acoustics P1 is suitable for a wide range of applications:

• Concerts and Touring: Quickly adapt to changing venues with precise measurement and calibration tools.

• Theater Productions: Fine-tune delay and EQ settings for complex speaker arrangements.

• Corporate Events: Integrate multiple signal sources while maintaining high audio quality and reliability.

• Fixed Installations: Ideal for stadiums, houses of worship, and conference centers where long-term performance and remote monitoring are crucial.

• Broadcast Studios: Manage high-quality, multi-format inputs and outputs seamlessly.

Wherever precision audio matters, the Acoustics P1 is a natural fit.

Why Audio Engineers Choose the Acoustics P1

There are several reasons why seasoned audio engineers and system designers consistently trust the Acoustics P1:

1. Unmatched Flexibility: With support for multiple input formats and a robust matrix mixer, it adapts to any situation.

2. Superior Audio Quality: Thanks to premium A/D and D/A converters and high-resolution DSP processing.

3. Reliability: Redundant source switching ensures that live shows and broadcasts are protected against signal loss.

4. Ease of Use: Both the front panel and LA Network Manager make operating the system intuitive, even under pressure.

5. Measurement Capabilities: Having a built-in measurement platform reduces setup time and increases tuning accuracy.

When an AV system needs to deliver flawless sound to hundreds or even thousands of listeners, every detail matters. The Acoustics P1 delivers the tools and technology needed to meet these demanding standards.

Final Thoughts

For anyone serious about professional audio-visual production, the Acoustics P1 is not just a tool—it's a game-changer. It combines cutting-edge signal processing, advanced system measurement, and superior reliability into a single, user-friendly device. Whether you're upgrading your touring rig, designing a complex installation, or managing a broadcast, investing in the Acoustics P1 will give you the control and performance you need.

Its versatility ensures you can face any venue, any event, and any technical challenge with confidence. Plus, with its combination of analog and digital support, future-proof AVB networking, and powerful onboard DSP, the Acoustics P1 will continue to be a cornerstone of modern sound systems for years to come.
