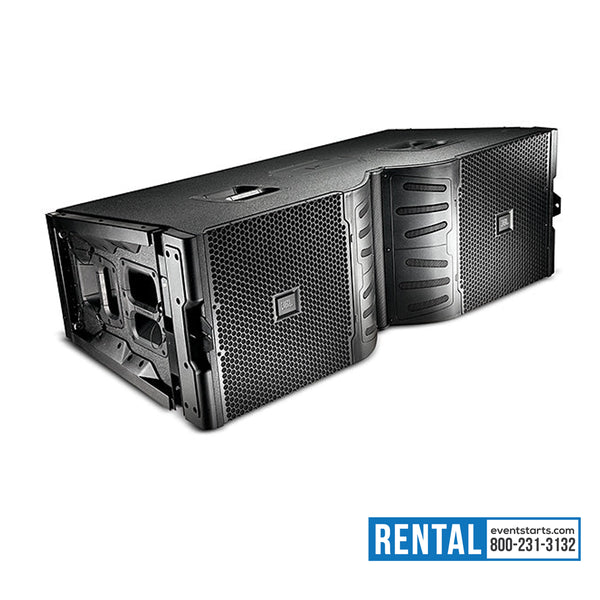

JBL VTX V25-II Large Fullsize 3-Way Line Array Speaker (VTX V Series)

The JBL VTX V25-II, part of the VTX V Series of professional line array systems, takes large-scale live sound reinforcement to a new level with world-class acoustics, advanced DSP processing, extraordinary output capability and seamless system integration. This passive three-way full-size high-directivity line array element is engineered from the ground up to harness JBL's most advanced acoustic technologies. A high-performance driver system featuring two 2000W 15" Differential Drive woofers, four 8" Differential Drive midrange transducers and three revolutionary D2 Dual-Diaphragm Dual-Voice-Coil Compression Drivers delivers unmatched clarity, projection and definition at extreme SPL levels. The VTX V25-II's new 4th generation waveguide improves long throw performance and wavefront control, while BSS Audio OmniDrive HD V5 processing and JBL HiQnet Performance Manager configuration and control software give engineers complete command over system tuning and deployment for any large-scale production environment.

General Specifications:

• System Type: Full Size 3-Way High-Directivity Line Array Element
• Power Handling: 4000W total
• Frequency Range: 35 Hz – 18 kHz (-10 dB)
• Horizontal Coverage: 90° nominal (250 Hz – 16 kHz)
• Maximum Peak SPL: 149.5 dB (HF) / 140.5 dB (MF) / 141 dB (LF)
• Components: 2x 2267H 15" Differential Drive LF, 4x 2169H 8" Differential Drive MF, 3x 2430K D2 Dual Driver HF
• Processing: BSS Audio OmniDrive HD V5 / JBL HiQnet Performance Manager
• Amplification: Crown I-Tech HD (recommended)
• Suspension: Fixed-angle ASM, 0°–10° inter-enclosure angle (tension or compression mode)
• Enclosure: 18 mm, 11-ply Finnish birch plywood with DuraFlex coating; cast aluminum front baffle
• Grille: Powder-coated hex-perforated steel with acoustically transparent black cloth backing

Dimensions:

• Width: 16.3 in (414 mm)
• Depth: 24.2 in (615 mm)
• Height: 48.2 in (1224 mm)
• Net Weight: 182 lbs (82.6 kg)

Features:

• 4th generation HF waveguide for improved long-throw performance and superior wavefront control
• Patented D2 Dual-Diaphragm Dual-Voice-Coil Compression Drivers for extreme HF output with reduced distortion and 30% lower weight
• JBL Differential Drive technology across LF and MF transducers for enhanced power handling and reduced distortion
• Patented RBI (Radiation Boundary Integrator) for seamless midrange-to-high frequency transition
• Patented S.A.F.E. suspension system for fast, secure rigging with fewer pinning operations
• Available in fixed-angle tension (V25-II) or compression suspension (V25-II-CS) configurations
• Full compatibility with JBL HiQnet Performance Manager for system-wide configuration, control and monitoring
• Optimized power match with Crown IT4x3500HD amplifier
• Tour-grade construction built to withstand the demands of large-scale touring and festival environments
