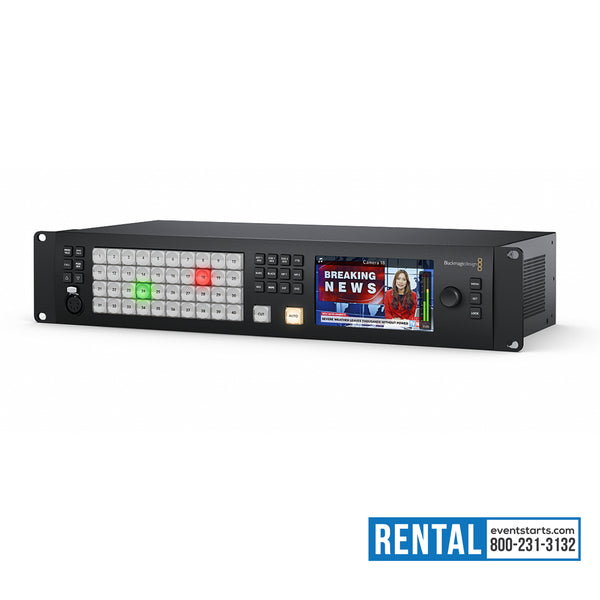

RENTAL ATEM 4 M/E Constellation 4K

ATEM Constellation switchers feature a compact rack mount design with a built in control panel. This allows operation of the switcher, critical during setup or for emergency use. Also included is a large LCD so customers can see program output and change switcher settings via on screen menus. The compact design is perfect for portable live production, with the rear of the switcher including connections for 3G-SDI or 12G-SDI inputs, aux outputs, balanced audio and Ethernet for control. The top 4 M/E models even include RS-422 for serial control and MADI digital audio connections.

ATEM Constellation switchers are ideal for concerts and music festivals because customers can place cameras on all areas of the stage for amazing coverage. Even live sports benefit from the huge number of inputs and DVEs that let customers build multi-layer compositions to cover the action. The fastest way to produce programming is live. With powerful internal graphics and lots of ATEM advanced chroma keyers, customers get everything customers need for complex program production. ATEM Constellation is also perfect for house of worship programming as it’s big enough to allow professional results, but it’s very simple to learn so it’s easy to train a volunteer crew.

With a control panel built into the front panel, customers can simply walk up and operate the ATEM Constellation at any time. Plus the front panel control buttons are the same premium type used on full sized panels so they are extremely reliable. Customers can even control keyers, media and fade to black from the front panel. Plus the front panel LCD and menu buttons also allow almost every single operational feature of the switcher to be accessed.

The ATEM Constellation family has a massive number of fully independent outputs. These SDI outputs are very powerful because customers can independently route any SDI input or any internal source to each SDI output. That’s perfect for running independent feeds to stage screens, master recorders and streaming processors. Or use the SDI outputs for ISO recorders, where each deck will get a resynchronized switcher input with matching timecode. All SDI outputs contain program audio, RP-188 timecode, SDI camera control, tally and talkback.

• Advanced design with built in front panel controls.
• 40 standards converted 12G-SDI inputs.
• 24 customizable 12G-SDI outputs.
• USB output operates as a webcam and supports all video software.
• 4 independent multiviews with multiple layout options.
• 4 independent DVEs.
• Professional talkback compatible with ClearCom and RTS.
• Internal media for stills and motion graphics.
• Includes 16 ATEM Advanced Chroma Keyers.
• 2 SuperSource multi layer processors.
• Multi rate 12G-SDI for all HD and Ultra HD television standards up to 2160p60.
• Built in 156 channel Fairlight audio mixer.
• Compatible with all ATEM hardware control panels.
