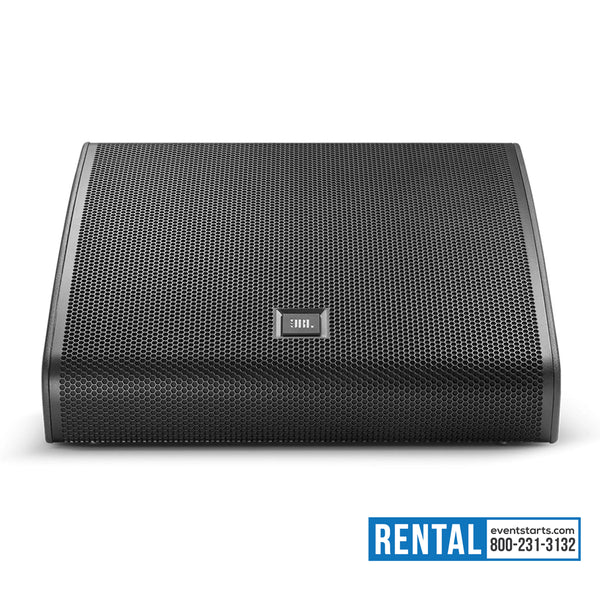

- legant, low profile, compact design suitable for touring and high profile broadcast applications
- State of the art JBL transducers, including Differential Drive™ cone transducers and D2 dual diaphragm dual voice coil compression driver
- 60x60 High Frequency Waveguide featuring JBL's patented Image Control Waveguide Technology
- Single-Channel (Passive) and Dual-Channel (Bi-Amp) Operation Modes for maximum flexibility in system configuration and deployment
Specifications
Frequency Range (-10dB) - 45 Hz - 19.5 kHz
Coverage Pattern (-6 dB) - Horizontal: 60; Vertical: 60
System Input Power Rating - Passive: 1500 W Continuous (IEC / 100 hour) Active: LF: 1500 W Continuous (IEC / 100 hour) HF: 100 W Continuous (IEC / 100 hour)
Maximum SPL (1m) - 138 dB (Preset: VTX M22 FR)
System Latency3 - 3.33ms
System Amplification - Crown Audio I-Tech HD
Nominal Impedance - Passive: 4 ohms, Active LF: 4 ohms, Active HF: 8 ohms
LF Driver - 2 x 2262H, 304 mm (12 in) diameter, dual 76 mm (3 in) diameter voice coil, NDD®, Direct Cooled™
HF Driver - 1 x D2430H, D2 dual diaphragm, dual 76mm (3 in) diameter voice coil
Monitor Angle - 30 degrees
Enclosure - mm, 11-ply Finnish birch plywood
Grille - Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth backing
Input Connectors - Passive: Neutrik® Speakon® NL-4 (4x): Selectable: Pins 1 ± or Pins 2 ± Active: Neutrik® Speakon® NL-4 (4x): Pins 1 ± (LF) | Pins 2 ± (HF)
Dimensions (H x W x D) - 380 mm x 671 mm x 555 mm, (15 in x 26.4 in x 21.8 in
Net Weight (each) - 27 kg (60 lbs)
