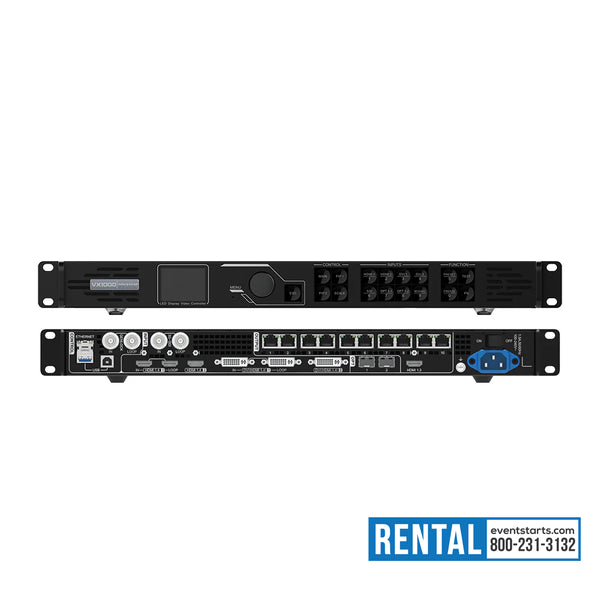

The VX1000 is NovaStar’s new all-in-one controller that integrates video processing and video control into one box.

Video Controller, ByPass, Fiber Converter, free switching between three modes

VX1000 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch applications.

The VX1000 is a professional, high-resolution LED display controller offering 6.1M pixel capacity for 4Kx1K resolutions. Built-in image scaling ensures automatic fitment to the screen size with powerful front-end processing. With professional interfaces integrated, the VX1000 provides excellent image quality on any screen size without the need to configure software resolutions manually.

10 Ethernet ports of output provide 6.5 million pixels of loading capacity

A single unit can output a maximum width of 10,240 pixels, with a maximum height of 8,192 pixels

4K x 1K@60Hz high resolution input, 4K x 1K point to point display

3 x 4K layers, free scaling for each layer

Ultra-low 1 frame latency

Long-distance optical transmission

The VX1000 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 10 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX1000 unit can drive up to 6.5 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels, respectively, which is ideal for ultra-wide and ultra-high LED screen applications. The VX1000 is capable of receiving a variety of video signals and processing high-resolution 4K×1K@60Hz images. In addition, the device features stepless output scaling, low latency, 3D, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience. What's more, the VX1000 can work with NovaStar's supreme software NovaLCT and V-Can to greatly facilitate your in-field operations and control, such as screen configuration, Ethernet port backup settings, layer management, preset management and firmware update. Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX1000 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.

Features

Input connectors:
− 1x HDMI 1.4 (IN & LOOP)
− 1x HDMI 1.4
− 1x DVI (IN & LOOP)
− 1x DVI
− 1x 3G-SDI (IN & LOOP)
− 1x 10G optical fiber port (OPT1)
Output connectors:
− 10x Gigabit Ethernet ports
A single device unit drives up to 6.5 million
pixels, with a maximum width of 10,240
pixels and a maximum height of 8192 pixels.
− 2x Fiber outputs
OPT 1 copies the output on 10 Ethernet
ports.
OPT 2 copies or backs up the output on 10
Ethernet ports.
− 1x HDMI 1.3
For monitoring or video output
Self-adaptive OPT 1 for either video input or
sending card output:
Thanks to the self-adaptive design, OPT 1 can
be used as either an input or output connector,
depending on its connected device.
Audio input and output:
− Audio input accompanied with HDMI input
source.
